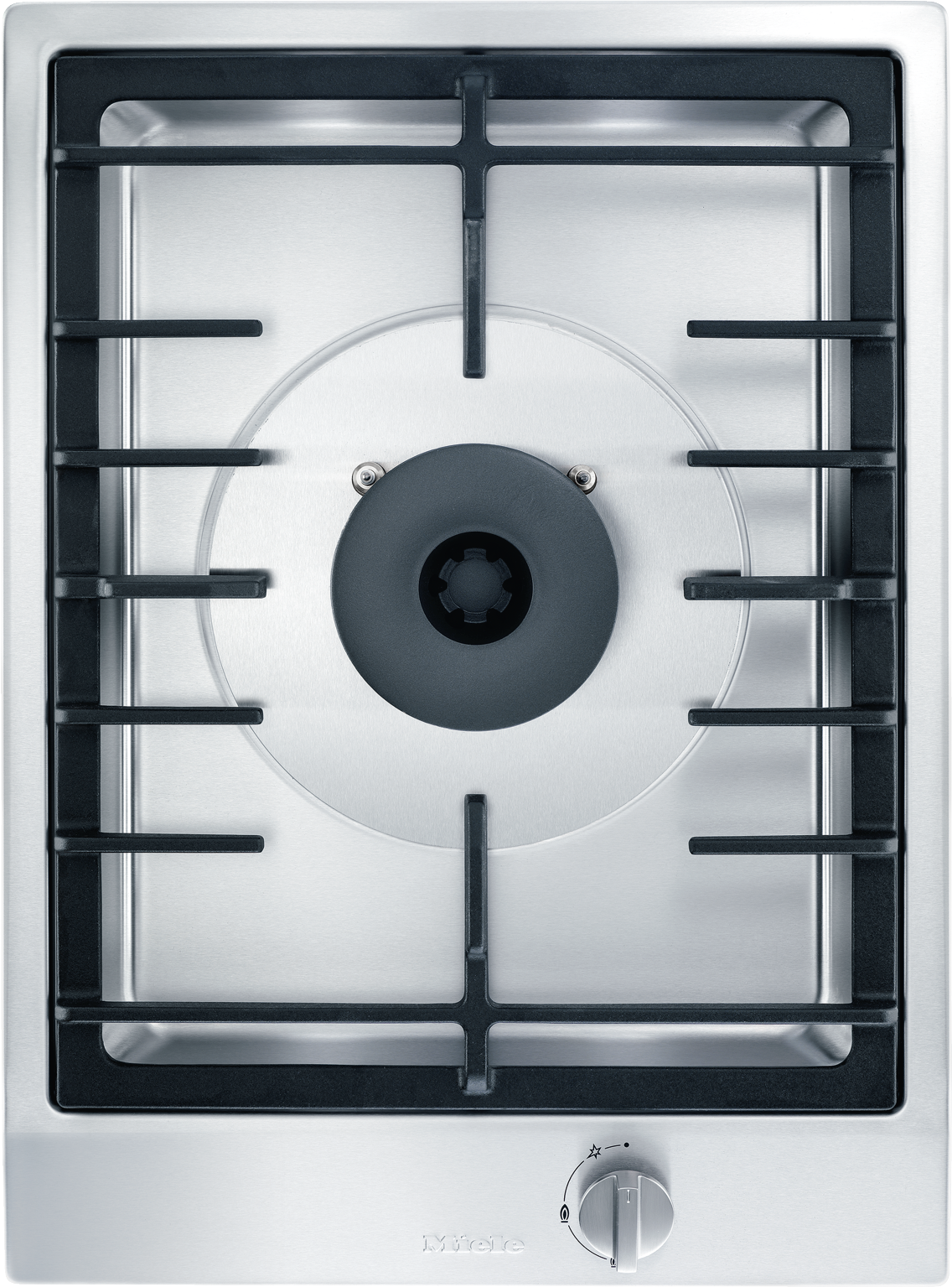

  • Miele - CS 1028 G – Hobs - 1
ProLine element

CS 1028 G

with one burner
sale price$24,000.00


Product details

  • Professional design - 380 mm wide stainless steel trough
  • Particularly brilliant performance - mono wok with up to 8 kW
  • Simple controls -single-handed operation via rotary dial control
  • Extremely safe -
    GasStop function
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
CS 1028 G
Manufacturer material number
07094010
EAN number
4002514355603
Marketing class
Keine Zuordnung
Heating type
Gas
ProLine
Stainless steel trough
Cast iron pot rests (matt black enamelled)
Miele logo embossed in stainless steel
Number of cooking zones
1
Position
Centred
Type
Single wok burner
Max. rating in W
8000
Operation via sensor controls
Knob
Operation via knobs
Electronic ignition with single-hand operation
GasStop
Dimensions (W x D) in mm
380 x 150 x 520
Dimensions in mm (width)
380
Dimensions in mm (height)
150
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
364 mm x 500 mm
Casing height incl. connection box in mm
135
Cutout dimensions in mm (width) with surface-mounted installation
364 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Weight in kg
10
Total rated load in kW
8
Voltage in V
230 - 240
Frequency in Hz
50 - 60
Length of supply lead in m
2
Mains cable
EAN
4002514355603

What's included

Mains cable
  • CombiSet appliances leave nothing to be desired
    CombiSet appliances leave nothing to be desired

    CombiSet – combination

    Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.

  • The perfect combination
    The perfect combination

    Stainless-steel frame

    Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

  • Design in detail
    Design in detail

    Rotary dial controls

    Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.

Design

The perfect combination
The perfect combination

Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.

User convenience

CombiSet appliances leave nothing to be desired
CombiSet appliances leave nothing to be desired

CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.
Design in detail
Design in detail

Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.
Ergonomics in detail
Ergonomics in detail

Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.

Downloads

Product Fact Sheet
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/1ddc5e77-9928-444d-aa56-b3c70064b9a9/20000055598_HighresDigitalRGB.png
Descriptions

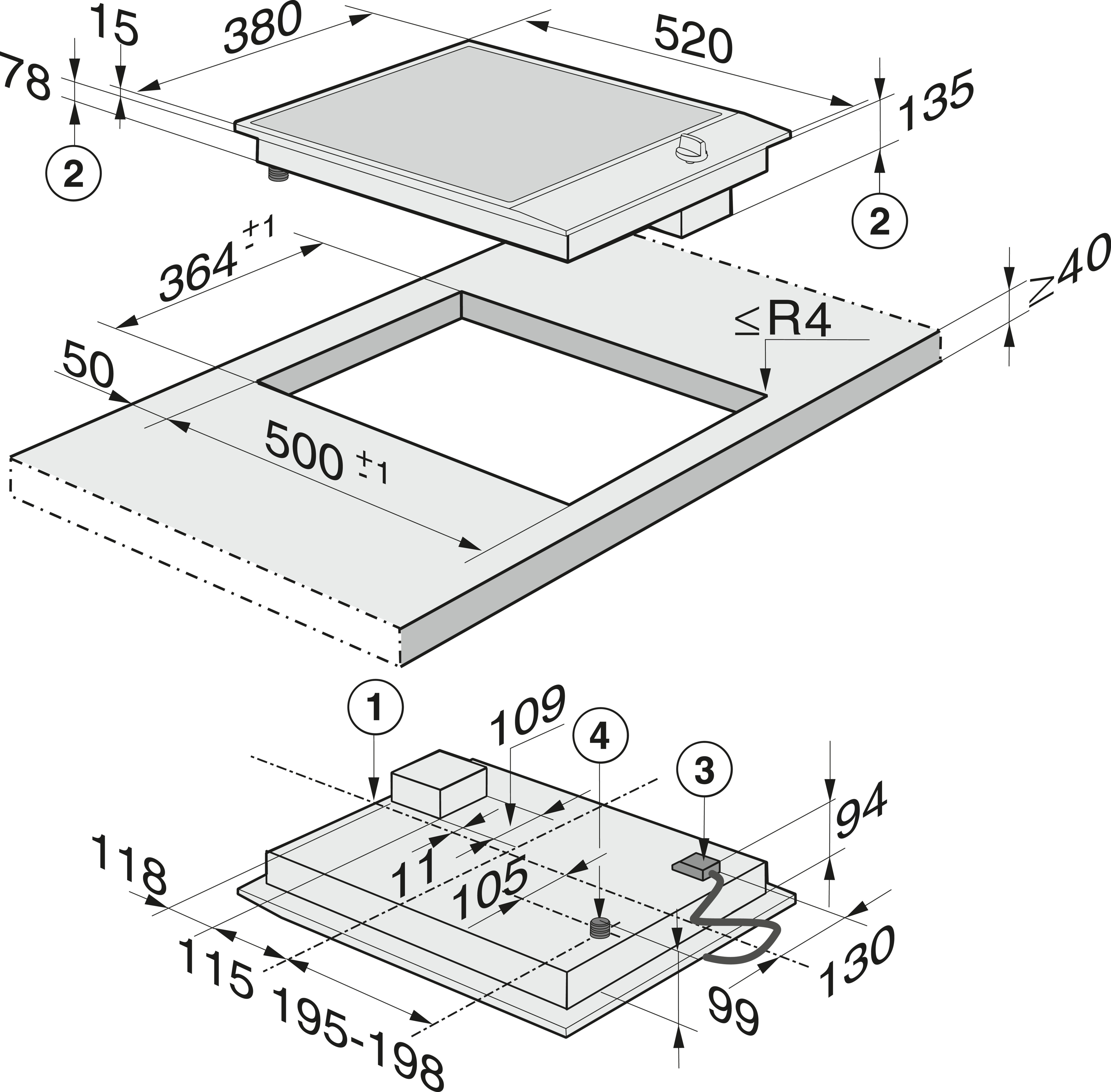

CS 1028 G (Installation drawing)
1. Front, 2. Building-in depth, 3. Mains connection box with mains connection cable, L = 1440 mm, 4. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
